Artis 5000U, A2+ LED UV high production platform

Expand your business, Print big and up to 71 BY 51 cm

artis5000U
artis5000U
artis5000U
artis5000U



Print bigger and 2X faster

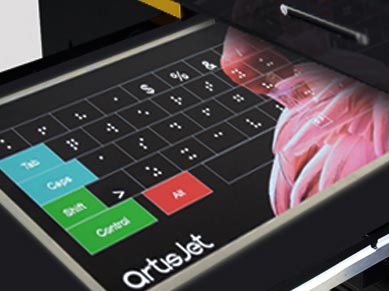

Textured and embossed large format photo realistic printing

Direct printing on dark and transparent materials

Optimal for printing on both rigid and flexible substrates

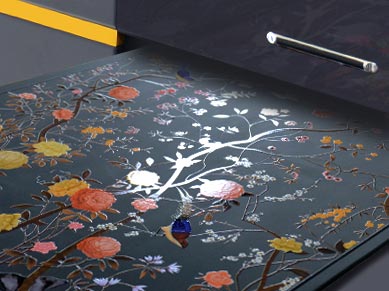

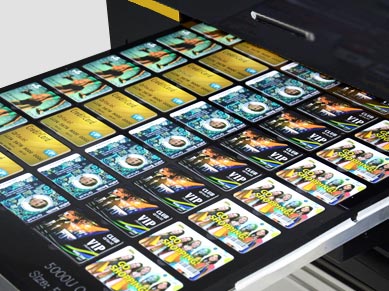

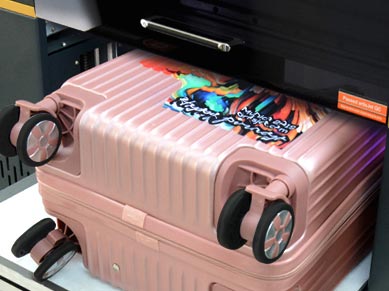

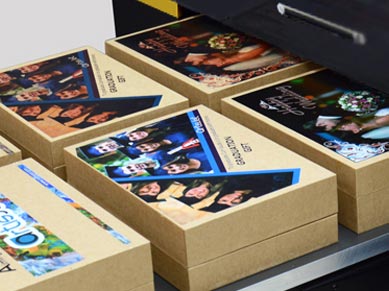

Ideal for printing signage, packaging, decoration (wood printing, ceramics, glass, plastics, aluminum...etc...), posters, promotional items.


Upscaled features


Unique lateral loading architecture

Optimal cost saving with the continuous ink supply system

Feathered printing rendering mode

Automatic error checking on boot with error reporting

Printhead height self adjustment

Extended printhead life time with the flash on ink firing technology

Simplified operation and maintenance

Interlaced curing sytem

Built in liquid cooling control system

Versatile printing with the LED UV power level adjustment

Y axis servo motor for increased printing quality


ASK FOR A QUOTATION



BUSINESS OPPORTUNITIES AND APPLICATIONS


Technical Specifications

pdf-icon
Print speed   5 minutes for Full 51 * 70CM @ 1440 * 1440 dpi
Printing technology   UV LED (Built in water cooling)
Ink    artisink DTS3 (C,M,Y,K,W), LC, LM, V available
Media Application Signage, packaging, decoration (wood printing, ceramics, glass, plastics, aluminum...etc...), posters, promotional items
  Media Size 510 x 710 mm (20.07 x 27.95 in)
  Thickness 100 mm (3.93 in)

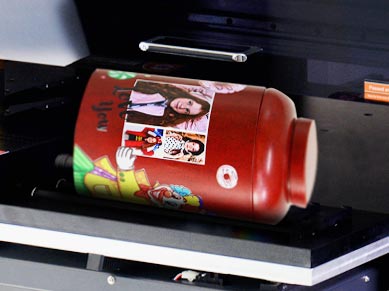

  Rotary Print Optional
Printing Printing modes 4 pass
6 pass
8 pass
  Print Size 510 * 710 mm
  Print Head On demand Epson DX5 piezo electric printhead. Made in Japan
Connectivity Nozzles Variable dot size printing technology, starting from1.5 pl and up to 21pl
  Ports USB 2.0
  Operating systems Windows
Dimensions Depth x Width x Height Printer 790 x 970 x 540 mm (31.10 x 38.18 x 21.25 in)
Shipping 1100 x 1230 x 760 mm (43.30 x 48.42 x 29.92 in)
Weight   Printer 180 Kg, Shipping 210 Kg
Content of the box   artis 5000U U, USB cable, Power cable, User manual book, washing and ink - joiner tools, spare parts package
Environmental ranges   1 - 35 °
Power consumption and requirements   AC100V~240V±10%, 0.5kVA
Certification   CE certified
Warranty   One year limited warranty

Flash On Ink Firing System

Intelligently powered by ArtisPrinters FOIF system, the artis 5000U printer electronically activates the UV LEDs when firing ink only. As a result, the life time of the printhead and the UV LEDs is maximized. FOIF also protects the entire ink system including the ink pump, the wiper, the damper, and the cap tops.


Continuous Ink Supply System

Unlike ink cartridges, this system allows for 100% utilization of available ink.


Unique lateral loading platform design

Unique design ensuring a better visibility of the output. Ideal for space constraints workplaces.


Control On Demand System

Designed for an enhanced flexibility and simplicity, brotherJet COD digitally controls the operation of the LED UV system. It automatically adapts to different materials and working environments. COD controls the UV Curing mode( Bi-directional, Uni-directional). This will result in delivering an optimal printing quality and drying time.


Safe Water Cooling Control System

Designed for operational extra safety and simplicity, brotherJet’s SWCC system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wearout of the UV LEDs.


Self-automated printing height adjustment

Equiped with sensors to automatically adjust head height and reduce the print head strikes.


Gradient ECO UV LED Technology

Equipped with artisJet new UVGC2 UV LED clutter suppression Processor technology. The UV LED light wave varies from 365-395 and deliver the best print color durability by drying the prints in different layers.


Auto Cleaning Module

Extends the printer head life by running scheduled ink system cleaning and maintenance when the printer is idle for a period of time.


New Wave Pass Control Technology

Empowered by the wave print technology, the gradient feathering print functionality of artis 5000 U ensures the sharpness of the print output

Printer


artis 5000U artisJet 5000U, A2+ LED UV Printer


Ink


Product No. Description Ink Compatibility

DTS3 - 1000-001 Cyan UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-002 Magenta UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-003 Yellow UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-004 Black UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-005 Light Cyan UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-006 Light Magenta UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-007 White UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 1000-008 Varnish UV-LED Ink DTS3, 1000ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-001  Cyan UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-002 Magenta UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-003 Yellow UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-004 Black UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-005 Light Cyan UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500006 Light Magenta UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-007 White UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 500-008 Varnish UV-LED Ink DTS3, 500ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200-001 Cyan UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200-002 Magenta UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200003 Yellow UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200004 Black UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200-005 Light Cyan UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200-006 Light Magenta UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200-007 White UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U
DTS3 - 200-008 Varnish UV-LED Ink DTS3, 200ml artis 3060U, artis 3000U, artis 5000U

Cleaning agent Description
BRCA-U-1000-001 Cleaning agent for LED UV inks, 1000 ml
BRCA-U-500-001 Cleaning agent for LED UV inks, 500 ml
BRCA-U-200-001 Cleaning agent for LED UV inks, 200 ml

Fixing agent Description
BRCA-U-1000-001 Fixing agent A/B liquids for UV LED inks, 1000ml
BRCA-U-500-001 Fixing agent A/B liquids for UV LED inks, 500ml
BRCA-U-200-001 Fixing agent A/B liquids for UV LED inks, 200ml

Specifically designed for artisJet’s UV direct to print systems, ARTISRIP offers a simple and user friendly intuitive interface.

ArtisRip main features are

Layout platform

  • Layout editing platform, resize, mirror, text, color adjustment, color gamut check..
  • Raster and vector images support
  • Built in customizable print templates for printing pens, phone covers, lighters, wood cases, etc...
  • Previewing and smart nesting

Print Engine

  • Vivid color reproduction
  • Simultaneous printing to multiple print devices
  • Simultaneous White and CMYK printing
    • - Color then White print mode
    • - White then color print mode
  • Support for jpg, tif, bmp, png, ai and pdf image files
  • Color management engine base with ICC profiles support
  • Individual ink channel adjustment
  • Automatic white ink trapping
  • Feathering rendering mode (elliminates banding, enhances color transitions)
  • Direct printing from common graphic software.(CorelDraw, Photoshop, Autocad...)
