How LED UV ink system works with artisJet printers

artisJet ink system refers to a whole system installed in the artisJet direct to substrates printing machines. It’s a complex system and at the same time very simple to follow. The ink system has multiple parts, each one with a specific functionality: to pump, transmit, filter, fire/shoot out, wipe/clean the ink as well as storage the wasted ink. Moreover, the ink system has a self - automated maintenance functionality.

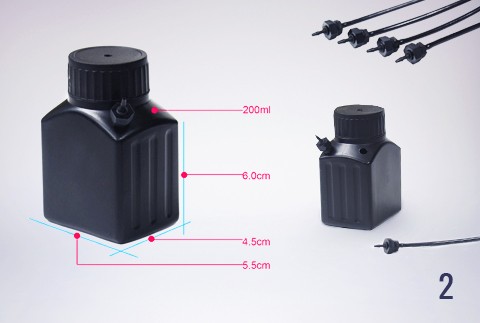

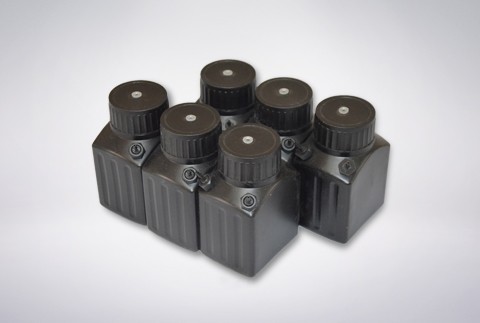

Ink containers (ink bottles). It refers to the ink tanks displayed in the form of ink bottles or refillable cartridges. artisJet is applying the open sourcing small ink bottles (1) with a volume capacity of 200 ml of inks for each ink color for continuous ink supply system (2). WHY? In the first place, because is easy to refill inks at a low cost for the machine user and their continuous production with portable loading, filtering and refilling system.

The second main reason of choosing accessible and refillable ink containers is that the small ink bottles will avoid decantation of the ink sediments if the ink will stay in the bottles for a long time. That is why, it is recommended to use the inks within 45 days, and otherwise the TiO2 from the LED UV ink will settle down gradually affecting the ink quality and also the entire ink system. The ink consumption is very low in artisJet digital direct to substrates printing systems. We need only 30 ml of all inks combined for each printed square meter. To understand better, a printed square meter can be translated into about 130 IPhone 6 mobile covers with full printing coverage.

There are few operation tips for the ink containers: to replace or clean the ink bottles every 3 – 5 months and to avoid spraying when refilling the ink bottles and to follow the operation menus.

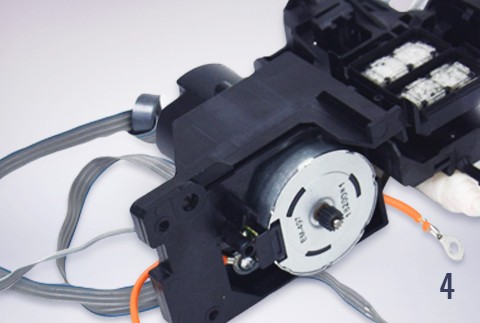

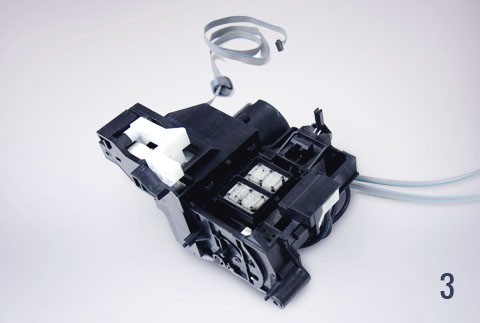

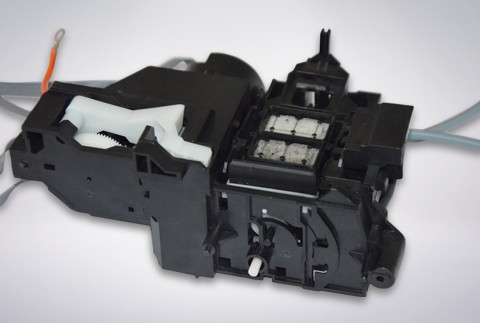

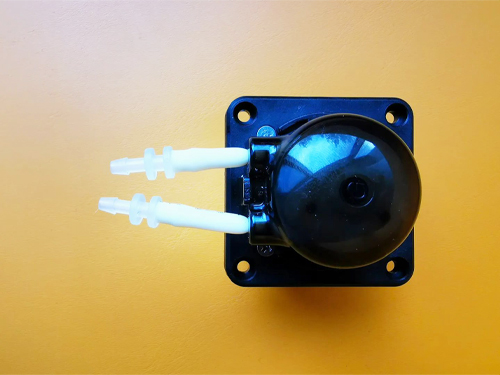

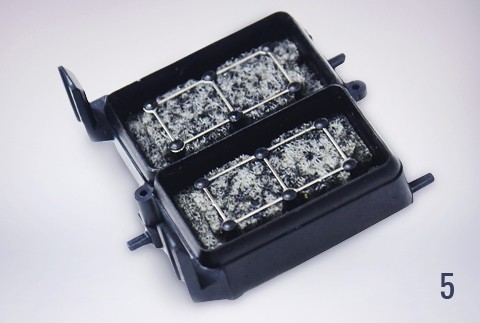

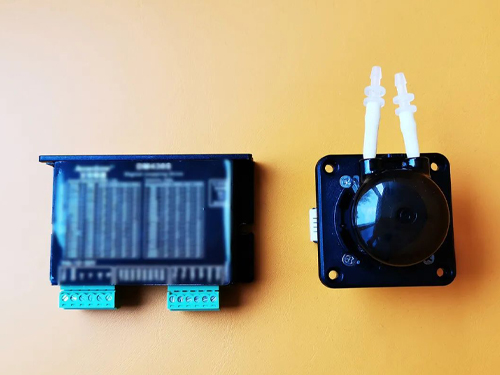

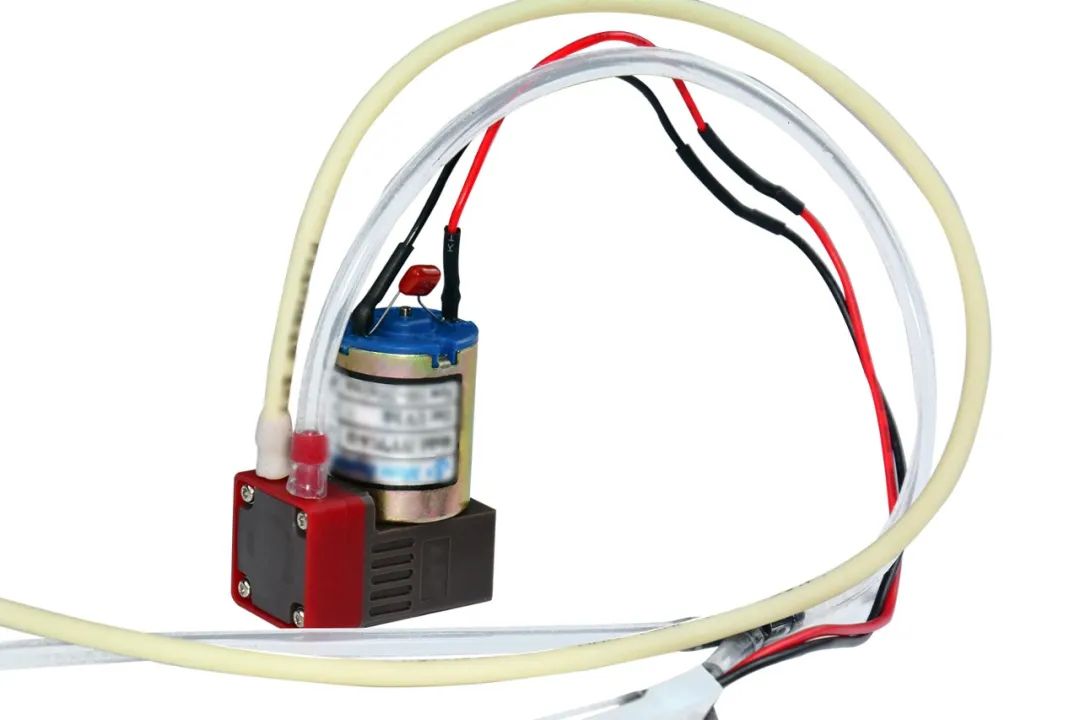

Ink pumping (or ink pump / ink service station). The ink pump (3) refers to a system that suctions the ink from the containers and it will direct the ink into the entire ink system via a motorized pump (4) with the spongy cap top (5) connected to the printer head (6) using vacuum power. The entire pumping system is structured as it follows: pump motors, cap tops and plastic frames.

A pinion gear of the pump motor rotates in the clockwise direction and the ink is suctioned. The cap tops unit is designed to make airtight in the cap sticking fast to the printer head surface so that the ink suction can be performed by the driving force of the pump unit. When the printer is in standby status or is power off, the cap unit prevents the ink from thickening.

Operation tips for ink pump: keep practicing the cleaning of the cap top by automatic cleaning and replace the cap top every 3 months.

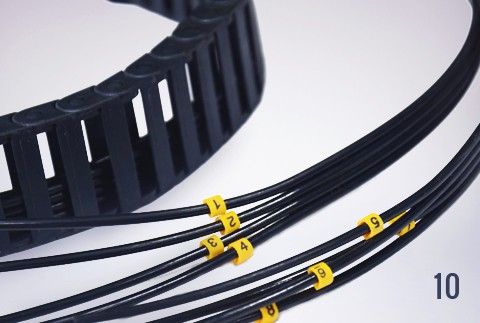

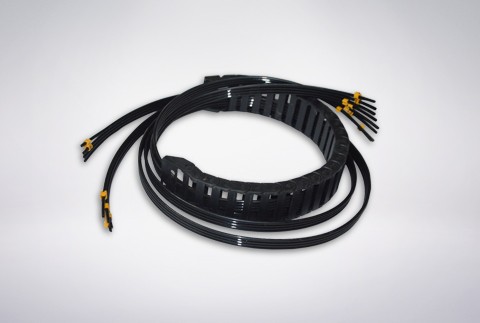

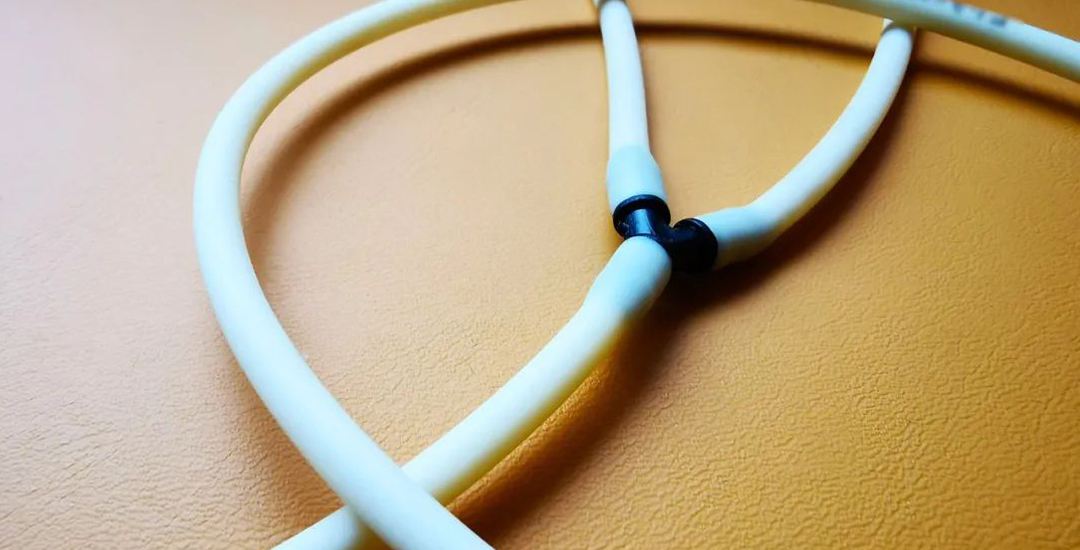

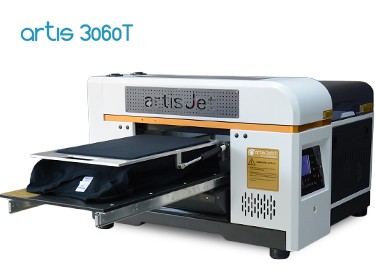

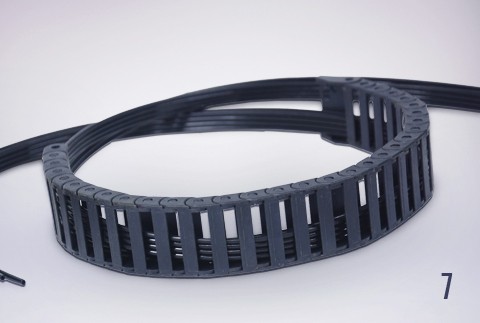

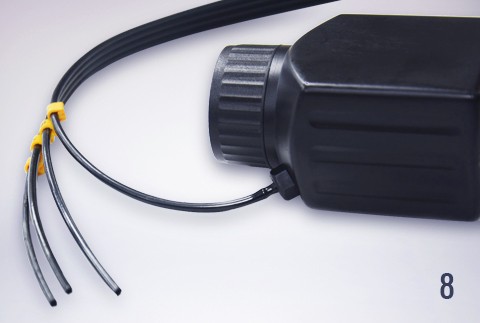

Ink transmitting (ink tubes). These refers to a system or a part that makes the path for the ink delivery to the printer head. artisJet applies 3*2 mm of dark plastic tubes with a standard length of 1.5 meters protected by the ink tube tank (7). One end of the ink tubes is connected to the ink tanks (8) and the other one is connected to the damper (9). Each ink tube has a number code (10), from 1 to 8 in the situation of an 8 ink channels printer (C, M, Y, K, W, W, W, W) as artis 3000U LED UV printer is.

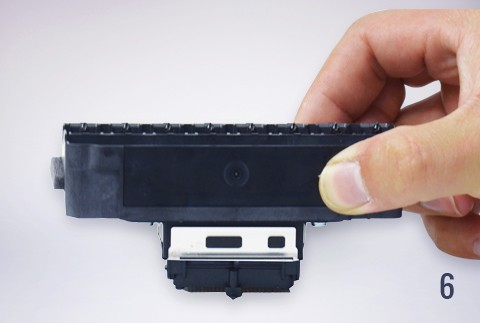

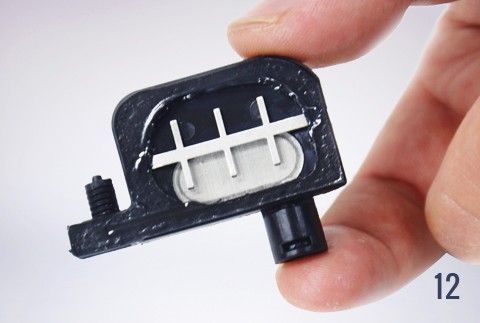

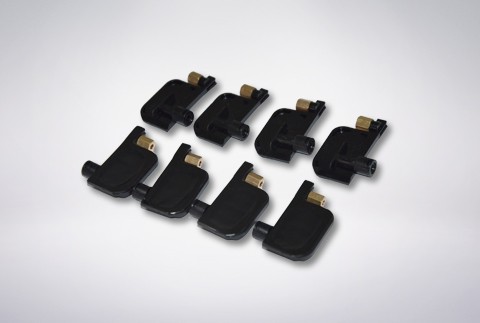

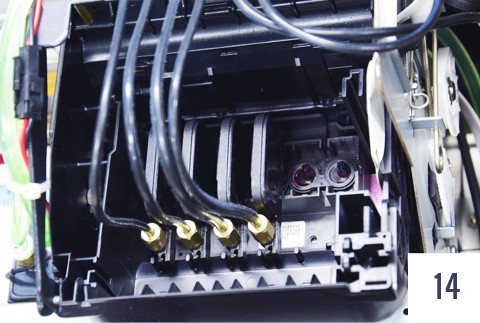

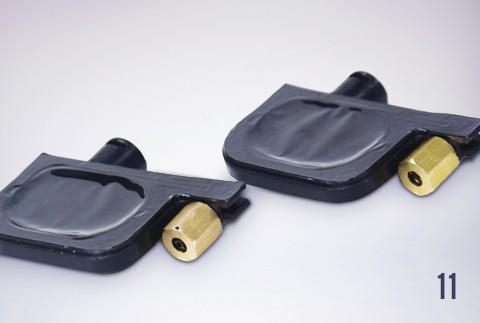

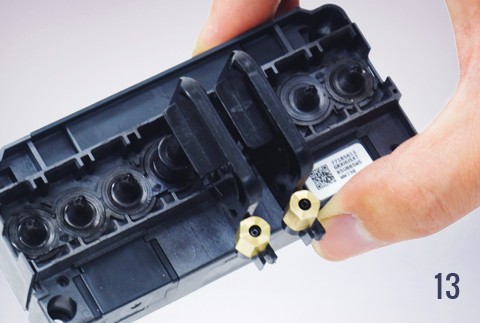

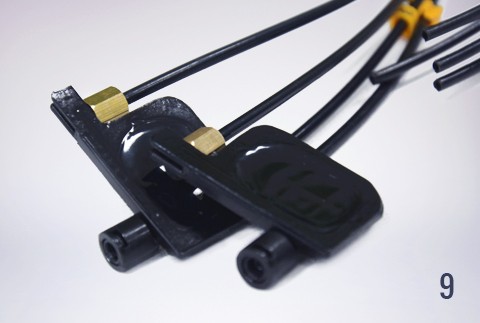

Ink filtering (ink dampers). It refers to a part connecting the ink tube to the printer head, containing the inks and filtering them before the last step to ink firing. The dampers (11) are made of plastic with foil filtering matt inside (12). The black port of the damper makes the connection with the printer head (13), while the ink tubes are fixed on the golden ports of the damper (14). The ink filtering is installed on the carriage and it moves with it. There is one damper for each color.

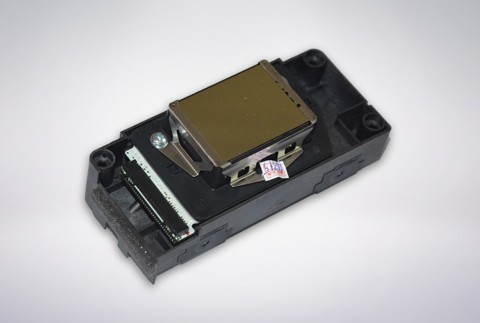

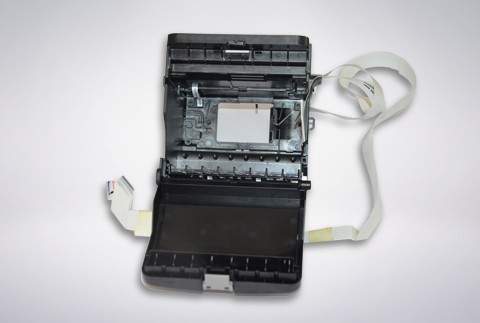

Ink firing. This is the part of the process when the colors are fired to the substrate. The printer head is the one responsible with shooting the inks onto the printing materials and it is placed on the carriage cart. The functionality of the ink firing process is based on the mother board.
Before firing ink to start a printing process, a nozzle checking must be done. The purpose of nozzle checking and head cleaning is to check that all the colors can print well and this way you can keep the ink system work properly.

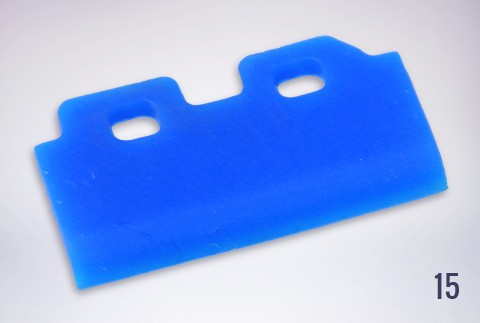

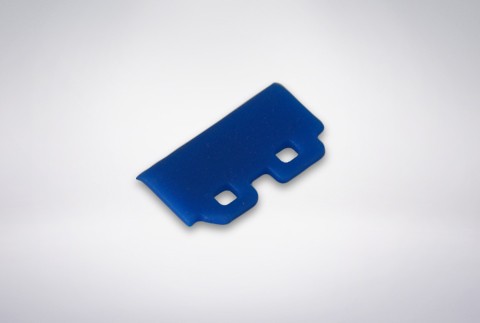

Ink wiper and ink cleaning. The ink wiper (15) is a part of the ink system that is made from silicon rubber. The wiper is installed nearby the ink pump and its role is to clean the wasted ink during the printing process on the mirror side of the printer head.

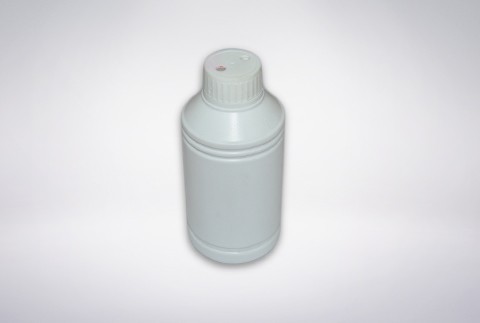

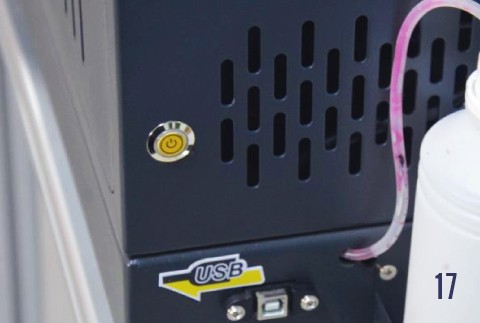

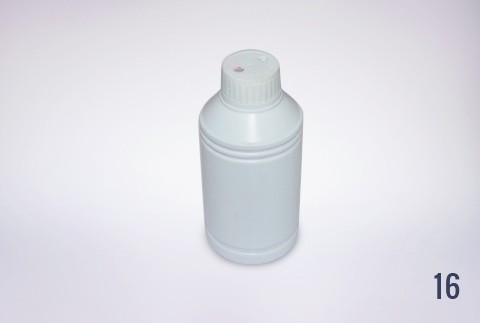

Wasted Ink Tank. During the pumping and printing process, the wasted ink is stocked into an ink bottle (16, 17).

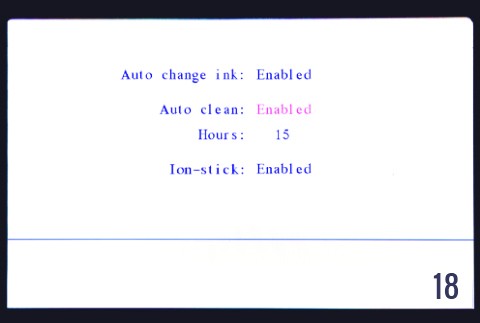

Ink system maintenance modules. There are two ways of safe maintenance of the ink system. One way is the self – automated maintenance module or automatic cleaning functionality (18) which refers to a system that powers the ink system maintenance on demand when the user is away. Another way of doing the cleaning maintenance is manually.

Share this article:

">
474 Hits

artisJet LED UV Continuous Ink Supply System

Whether you are new to digital LED UV printing or an experienced user, this article aims to help you in understanding better the artisJet LED UV ink system. But first, there are few points we have to highlight regarding artisJet LED UV technology.

Flash On Ink Firing System. One of the most important features is the Flash on Ink Firing System (FOIF) which makes the LED UV printer to electronically activate only the UV LEDs when the ink is fired. As a result, the printer head lifetime is maximized and it lasts up to 8 months of continuous operation. The UV LED module can last up to 25,000 working hours. FOIF helps to protect the whole ink system at the same time including the ink pump, wiper, dampers and cap tops.

Control On Demand System (COD) and LED UV curing. Designed for flexibility and simplicity, artisJet COD system is digitally controlling the UV LED curing mode to adapt for different substrates and working environments. The LED UV curing is a technology that has been advancing in the last few years and is considered as the best available on the market today.

artisJet LED UV Continuous Ink Supply System. CISS Ink Systems are designed to offer quality printing results without wasting time by changing cartridges. The continuous ink supply system is made of refillable ink tanks that are connected to the printer head until the ink is shoot out to the printing materials. Unlike the traditional ink cartridges which often requires replacements, the CISS allows the 100% utilization of the available inks making it suitable for high volume applications, therefore is cost saving.

LED UV ink system and its components. A LED UV ink system is made of multiple component parts as follows:

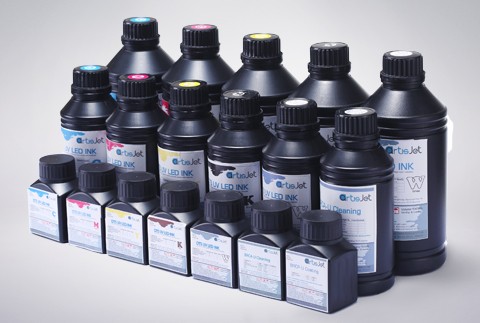

Ink bottles, which contain the ink liquid and is the ink source of the printer; the ink bottles comes in 3 types of containers for every user needs: 250 ml, 500 ml and 1000 ml;
Ink tubes, which help transferring the inks from the ink bottles to the carriage cart; a tube fixer is stabilizing the tubes onto the carriage;
The ink dampers filter the inks while transmitting the inks from the ink tubes and connecting to the printer head holders;
The printer head, which is the one responsible with shooting the inks onto the printing materials, it is placed onto the carriage cart.
The wiper is a small part that wipes the waste ink on the printer head mirror back side;
The ink pump powers, cleans and suctions the inks during the printing work;
The waste ink tank contains the waste ink accumulated from printer head during print.

Benefits of LED UV CISS ink system. When it comes to printing industry, the LED UV curing helps your business to move away from adverse and harmful toxic drying methods. Enjoy the many improvements by moving towards safer and eco-friendly working environment.
A LED UV system is a game changer and a main characteristic is the instant curing of the inks, so there is no need for drying time or powder. Moreover, you get the possibility to print on various materials, without constraints, even on heat – sensitive substrates and achieve high-end printing effects on plastics or any other material that don’t absorb inks.

Share this article:

">
804 Hits

artisJet LED UV Printing Technology

What is UV LED Print Technology? A system allowing the DIRECT digital prints onto all materials with instant drying speed, 3D embossed / textured printing results, sharp color performances, strong color durability and eco-friendly features.

How it works? UV stands for ultraviolet, while LED is the shortcut of Light Emitting Diode; the UV wavelength is from 1 to 400 nm, where the UV LED printing systems are using 365 – 395 nm. The name of the UV LED printer is given by the ink type, the DTS3 and DTSAT3 LED UV inks that artisJet systems are printing with. The UV LED lamps cure the digital pictures, letters, numbers printed from the printer hardware immediately during the print and change the liquid into solid substrates.

What are the main features of UV LED print? With its unique drying method from the UV LED lighting, the UV LED printing technology offers an instant dry during the digital print process. Due to its strong compatibility to wide range of materials, the UV LED print technology enables the direct print onto all type of products. Another characteristic of this technology is the stability on the white inks, which allows the direct print on dark and light materials. The instant drying feature allows a layered, textured and 3D embossed printing result. Without the VOC inside of the inks, the UV LED print technology is eco-friendly.

What are the advantages of artisJet’s UV LED print technology? Long life of UV LED lamps with wave length of 365 and 395 nm and 12,000 working hours is one of the main advantages. The flexible UV LED power adjustment for different materials printing on demand, the built-in liquid cooling system for safe and continuous printing production, as well as the piezo equipped with anti-static print system for high resolution digital direct printing makes the UV LED technology stand out. Another advantages of printing with LED UV technology is the wide range of products with different printing sizes and speed for all business levels and the low cost maintenance yet with high ROI (return on investment) on artisJet CISS system. Moreover, DTS3 and DTSAT3 inks allow the printing on both rigid and flexible substrates. That is why artisJet provides not only a printing business, but a business training as well.

What are the artisJet UV LED print technology mainly used for? It is about anything, anyone and everywhere. artisJet LED UV print technology is mainly used for:

customized phone cover printing (www.instacase.com, www.gocase.com.br, www.skinkin.com, www.hairyworm.com); personalized wood frame printing (www.woodpost.com, https://www.etsy.com/shop/WoodLifePrints?ref=hdr_shop_menu); PVC card printing (www.ownster.uk); dial face for meters and watches (www.cromptonusa.com, www.bjpinghe.com); trophy, awards and plaques (www.sportsfort.com, www.uniontrophy.com); promotional items (www.image-code.net, www.impressionsdpa.com, www.istersouvenir.rs); balloons, toys and play around (www.balloonmonkey.co.uk, www.picsolve.biz).
